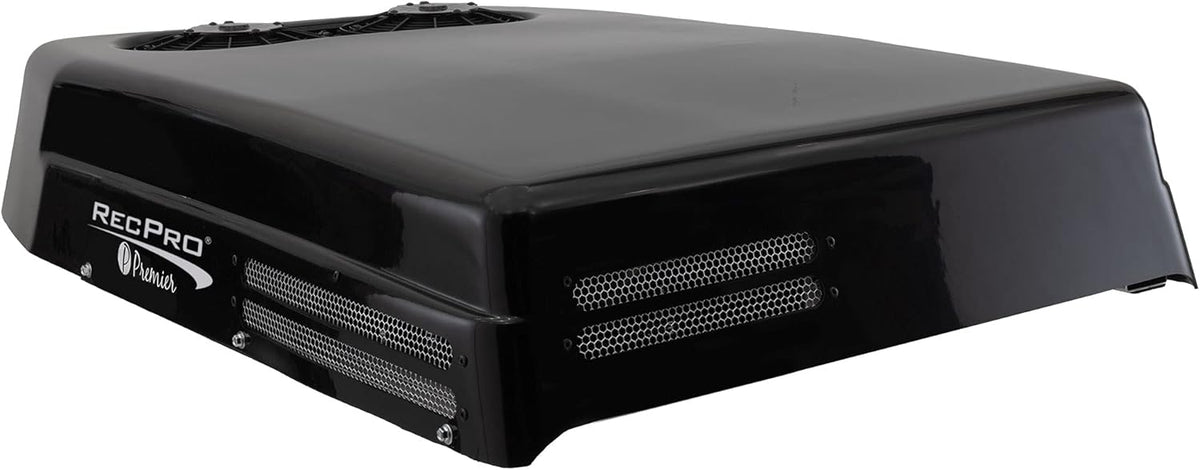

12V RV Air Conditioner, 22,000BTU, Black Q75083

Details:

• 12V RV Air Conditioner
• Compressor BTU rating: 20,000 BTU/hr
• Outdoor unit dimensions: 33 1/2' W x 9' H x 48' D
• Plenum (ceiling assembly) dimensions: 23 1/2' W x 3'H x 18'D
• Gasket dimensions: 17 1/4' W x 2 1/8' H x 17 1/4' D
• Comes with removable screen filters that can be cleaned and replaced
• Cooling capability only
• Weight: 90 lbs
• Non-ducted
• Excellent performance
• Low noise
• Low amp draw
• Perfect for solar powered RVs and Vans
• Lightweight construction
• Aluminum chassis construction
• ABS UV resistant cover
• Can be installed in a standard 14' x 14' roof opening
• Use 2 gauge wire for installation from the battery to the AC unit
• Wires into the temperature system already on the RV
• 2-year manufacturer warranty
• Can accommodate up to 4' roof thickness
• Best installed on a flat roof - less than 5 degrees inclination
• *Make sure to create a tight seal between air conditioner unit and the roof. A poor seal can lead to the compressor cycling on and off
• *Does not include a wall thermostat
• Designed with a soft start inverter driven compressor to ensure power draw never exceeds 100 Amps
• As a general rule of thumb, this unit should be able to cool the temperature of the air by 17-24 degrees
• Equipped with safety switches to protect the compressor from premature failure
• Made in America

** If installed on a curved/mesa/grooved/otherwise not smooth and flat roof, you may need a frame or filler for the gaps as well as sealant. Any modifications to the AC unit itself will void the warranty **

Technical Data:

• Power: 12V
• Current: ~80 AMP
• Maximum current: 100 Amp
• Wattage: ~950-1100 depending on ambient temperature
• Maxim
